| 1. | Pull the parking brake lever (A) with 196 N (20 kgf, 44 lbf) of force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks.
| |||
| 2. | If the number of lever clicks is excessive, adjust the parking brake. |
| 1. | Remove the center console panel . |
| 2. | Release the parking brake lever fully. |
| 3. | Loosen the parking brake adjusting nut (A).
|

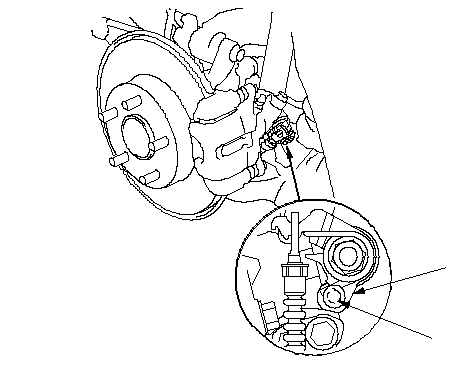

| 4. | Raise the rear of the vehicle, and support it with safety stands in the proper locations. |
| 5. | Remove the rear wheels. |
| 6. | Make sure the parking brake lever (A) on the rear brake caliper contacts the stop pin (B). NOTE: The parking brake lever will only contact the stop pin when the parking brake adjusting nut is loosened.
|
| 7. | Install the rear wheels. |
| 8. | Pull the parking brake lever 1 click. |
| 9. | Tighten the parking brake adjusting nut until the parking brakes drag slightly when the rear wheels are turned. |
| 10. | Release the parking brake lever fully, and check that the parking brakes do not drag when the rear wheels are turned. Readjust if necessary. |
| 11. | Make sure the parking brakes are fully applied when the parking brake lever is pulled all the way (8 to 10 clicks). |
| 12. | Install the center console panel. |
| 1. | Remove the center console panel. |
| 2. | Release the parking brake lever fully. |
| 3. | Loosen the parking brake adjusting nut (A).
|
| 4. | Press the brake pedal several times to set the self-adjusting brake before adjusting the parking brake. |
| 5. | Pull the parking brake lever 1 click. |
| 6. | Tighten the parking brake adjusting nut until the parking brakes drag slightly when the rear wheels are turned. |
| 7. | Release the parking brake lever fully, and check that the parking brakes do not drag when the rear wheels are turned. Readjust if necessary. |
| 8. | Make sure the parking brakes are fully applied when the parking brake lever is pulled all the way (8 to 10 clicks). |
| 9. | Install the center console panel. |
