Honda Civic 2006

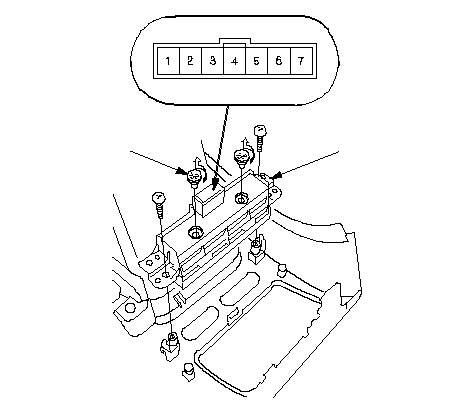

| 1. | Remove the subdisplay visor and disconnect the connectors. |
| 2. | Remove the two screws and the dash lights brightness controller-select and odometer select/reset button mph-km/h change switch (A).
|
| 3. | Check for continuity between the terminals in each switch position according the table.
 button pressed button pressed |
| 4. | If the continuity is not as specified, replace the bulbs (B) or the dash lights brightness controller and odometer select/reset button mph-km/h change switch. |
