A/C Condenser Replacement

1.	Recover the refrigerant with a recovery/recycling charging station.

2.	Remove the front grille.

3.	Remove the bolts, then disconnect the discharge hose (A) from the A/C condenser.

4.	Remove the bolt, then disconnect the receiver line (A) from the A/C condenser.

5.	Remove the bolts and the A/C condenser upper mount brackets (A).

6.	Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the bracket. Disconnect the 2P connector (C) then remove the clip (D).

7.	Remove the hood latch.

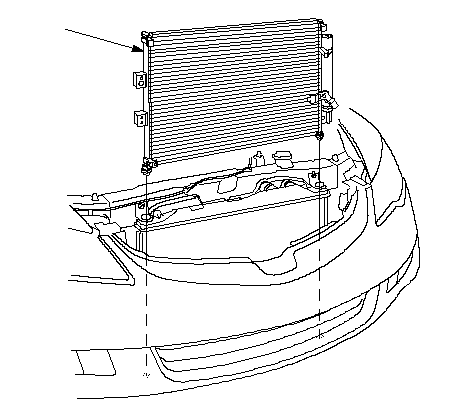

8.	Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.

9.

Install the A/C condenser in the reverse order of removal, and note these items: If you're installing a new A/C condenser, add refrigerant oil (SANDEN SP-10). Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage. Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption. Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately. Charge the system. Adjust the hood latch.
