Honda Civic 2006

Coolant Replacement (R18A)

Coolant Replacement

1.Start the engine. Set the heater temperature control dial to maximum heat, then turn off the ignition switch. Make sure the engine and radiator are cool to the touch.

2.Remove the radiator cap.

3.Loosen the drain plug (A), and drain the coolant.




A

4.Remove the drain bolt (A) located at the front of the cylinder head.




A
28 x 1.5 mm
83 N·m (8.5 kgf·m, 61 lbf·ft)

5.After the coolant has drained, apply liquid gasket to the drain bolt threads, then reinstall the bolt with a new washer and tighten it securely.

6.Tighten the radiator drain plug securely.

7.Remove the reserve tank, and drain the coolant,then reinstall the reserve tank.

8.Fill the reserve tank to the MAX mark (A) with genuine Honda Long Life Antifreeze/Coolant
Type 2 (P/N OL999-9001).




A

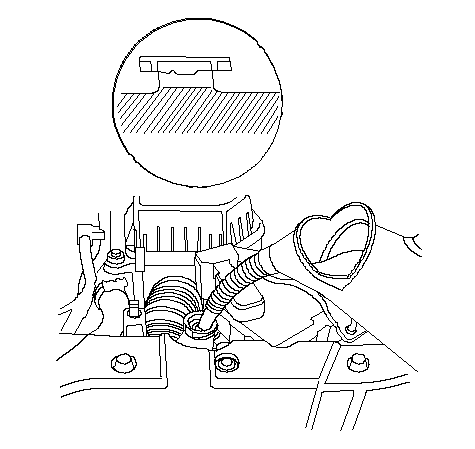

9.Pour genuine Honda Long Life Antifreeze/Coolant Type 2 into the radiator up to the base of the filler neck.

NOTE:
  • Always use genuine Honda Long Life Antifreeze/Coolant Type 2 (P/N OL999-9001). Using a non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail.
  • Genuine Honda Long Life Antifreeze/Coolant Type 2 is a mixture of 50 % antifreeze and 50 % water. Do not add water.

Engine Coolant Capacities (Including the reserve tank capacity of 0.4 L (0.11 US gal, 0.09 Imp gal)):
M/T with heater:
After Coolant Change:
5.2 L (1.37 US gal, 1.14 Imp gal)
After Engine Overhaul:
6.5 L (1.72 US gal, 1.43 Imp gal)
M/T without heater:
After Coolant Change:
4.6 L (1.22 US gal, 1.01 Imp gal)
After Engine Overhaul:
5.9 L (1.56 US gal, 1.30 Imp gal)
A/T with heater:
After Coolant Change:
5.5 L (1.45 US gal, 1.21 Imp gal)
After Engine Overhaul:
7.1 L (1.88 US gal, 1.56 Imp gal)
A/T without heater:
After Coolant Change:
4.9 L (1.29 US gal, 1.08 Imp gal)
After Engine Overhaul:
6.4 L (1.69 US gal, 1.41 Imp gal)




10.Loosely install the radiator cap.

11.Start the engine, and let it run until it warms up (the radiator fan comes on at least twice).

12.Turn off the engine. Check the level in the radiator and add genuine Honda Long Life Antifreeze/Coolant Type 2, if needed.

13.Put the radiator cap on tightly, then run the engine again, and check for leaks.

14.Clean up any spilled engine coolant.
