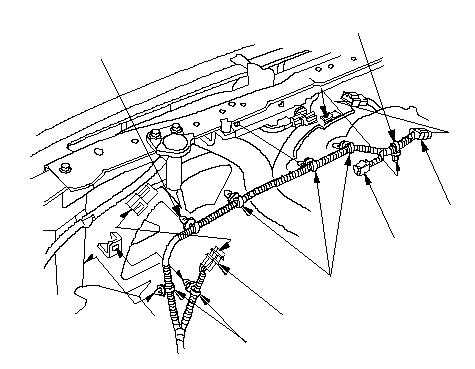

| 1. | Make sure you have the anti-theft code for the radio, or the navigation system, then write down the customer's audio presets. |
| 2. | Disconnect the negative cable from the battery first, then disconnect the positive cable. |
| 3. | Remove the battery. |
| 4. | Drain the engine coolant. |
| 5. | Remove the bulkhead cover. |
| 6. | Disconnect the fan motor connectors (A) and hood switch connector (B), then remove the harness clamps (C).
|
| 7. | Remove the reservoir hose (A), radiator cap base mounting bolts (B), clips (C), and radiator upper brackets (D).
|
| 8. | Remove the upper radiator hose (A) and lower radiator hose (B).
|
| 9. | Remove the splash shield.
|
| 10. | Disconnect the engine coolant temperature (ECT) sensor 2 connector (A), and remove the harness clamp (B).
|
| 11. | Remove the condenser bracket mounting bolts (A), then remove the bulkhead (B).
|
| 12. | Pull up the radiator, then remove the fan shroud assemblies and other parts from the radiator. DENSO T. RAD (TOYO) |
| 13. | Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely. |
| 14. | Install the bulkhead in the reverse order of removal. Apply body paint to the bulkhead mounting bolts. |
| 15. | Fill the radiator with engine coolant and bleed the air. |
