Starter Removal and Installation


1.Make sure you have the anti-theft code for the radio or the navigation system, then write down the customer's audio presets.

2.Disconnect the negative cable from the battery first, then disconnect the positive cable.

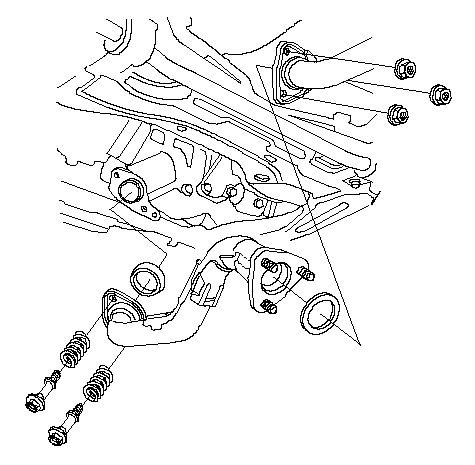

3.Remove exhaust pipe A.

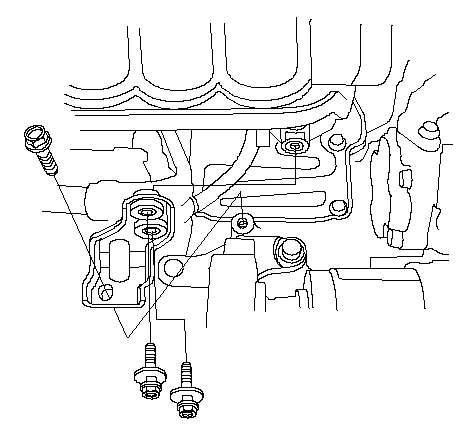

4.Remove the intake manifold bracket.

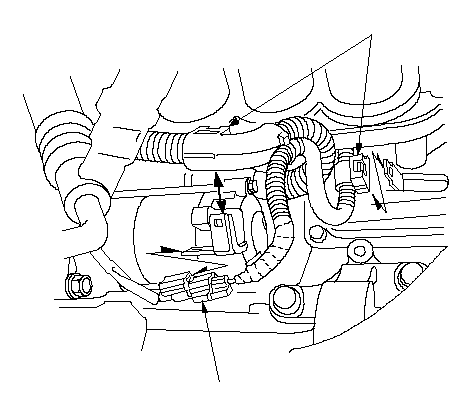

5.Remove the harness clamps (A) and harness connector (B) from each clamp.


6.Remove the two bolts securing the starter, then remove the starter from the engine.

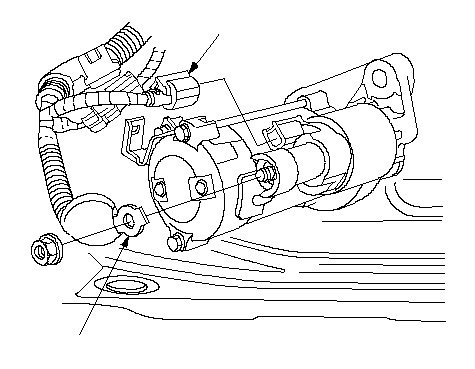

7.Disconnect the starter cable (A) from the B terminal and disconnect the connector (B) from the S terminal, then remove the starter.

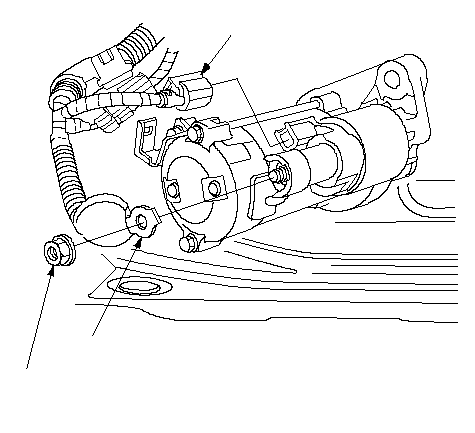

1.Install the starter cable (A) and connector (B). Make sure the starter cable crimped side of the ring terminal is facing out.

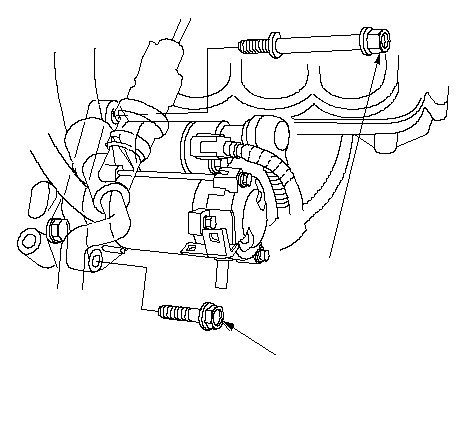

2.Install the starter, then loosely install the upper mounting bolt (A) and lower mounting bolt (B).


3.Tighten the upper mounting bolt, then tighten the lower mounting bolt.

4.Install the harness clamps (A) and harness connector (B) to each clamp.

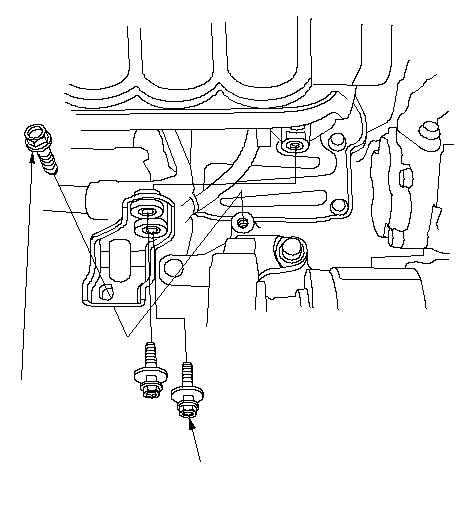

5.Install the intake manifold bracket.

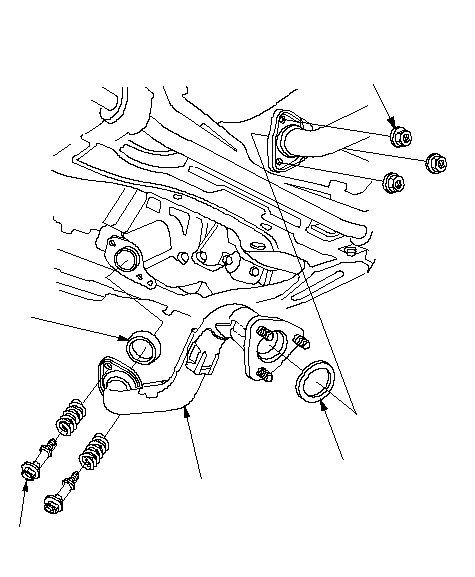

6.Install exhaust pipe A. Use new gaskets (B) and new self-locking nuts (C).


7.Connect the positive cable to the battery first, then connect the negative cable.

8.Start the engine to make sure the starter works properly.

9.Enter the anti-theft code for the radio or navigation system, then enter the customer's audio presets.

10.Set the clock.

11.Do the power window control unit reset procedure.
