| 1. | Securely clamp the countershaft assembly in a bench vise with wood blocks.
|

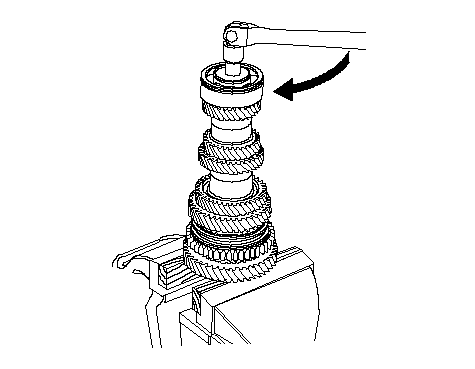

| 2. | Remove the special bolt (left-hand threads). |
| 3. | Support ball bearing (A) 6th gear (B) on steel blocks (C), then use a press (D) and an attachment (E) to press the countershaft out of the ball bearing.
|
| 4. | Remove the 32 mm shim and distance collar. |
| 5. | Support 4th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the gear.
|
| 6. | Support 2nd gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of 3rd gear.
|
| 7. | Support 1st gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the 1st/2nd synchro.
|
