| 1. | Relieve the fuel pressure. |
| 2. | Loosen the drain plug in the radiator, and drain the engine coolant. |
| 3. | Remove the under-cowl panel. |
| 4. | Remove the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).
|
| 5. | Remove the quick-connect fitting cover (A), then disconnect the fuel feed hose.
|

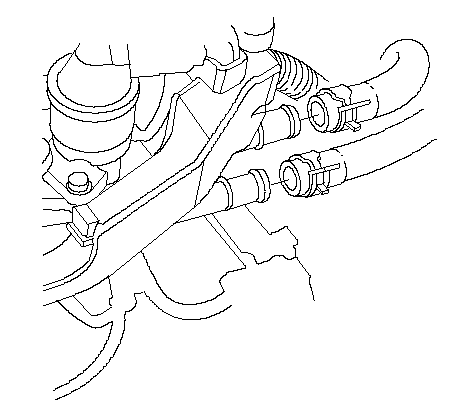

| 6. | Remove the heater hoses.
|
| 7. | Remove the rocker arm oil control solenoid. |
| 8. | Remove the intermediate shaft cover. |
| 9. | Remove the cover and exhaust manifold bracket, then remove the exhaust manifold.
|
| 10. | Install the exhaust manifold and tighten the bolts and nuts in a crisscross pattern in two or three steps, beginning with the inner bolt. |
| 11. | Install the other parts in the reverse order of removal. |
| 12. | Inspect for leaks: Turn the ignition switch ON (II) (do not operate the starter) so the fuel pump runs for about 2 seconds and pressurizes the fuel line. Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line. |
| 13. | Refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve open. |
