ATF Replacement

NOTE: Keep all foreign particles out of the transmission.

1.Bring the transmission to normal operating temperature (the radiator fan comes on).

2.Park the vehicle on the level ground, and turn the engine off.

3.Remove the drain plug (A), and drain the automatic transmission fluid (ATF).



4.Reinstall the drain plug with a new sealing washer (B).

5.Refill the transmission with the recommended fluid into the dipstick hole to bring it to the upper mark on the dipstick. Always use genuine Honda ATF-Z1 automatic transmission fluid (ATF).Using a non-Honda ATF can affect shift quality.

Automatic Transmission Fluid Capacity:
2.7 L (2.9 US qt, 2.4 Imp qt) at change
6.5 L (6.9 US qt, 5.7 Imp qt) at overhaul

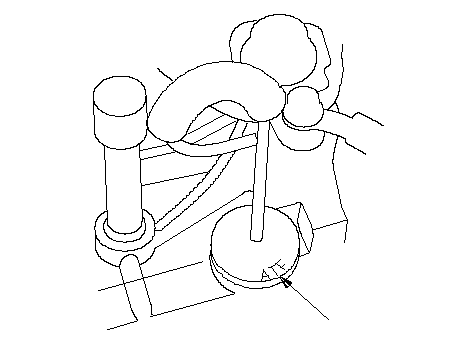

6.Insert the dipstick back into the transmission with the letters ‘‘ATF'' pointing toward the front of the vehicle.
