VSA Off Switch Test

VSA Off Switch Test

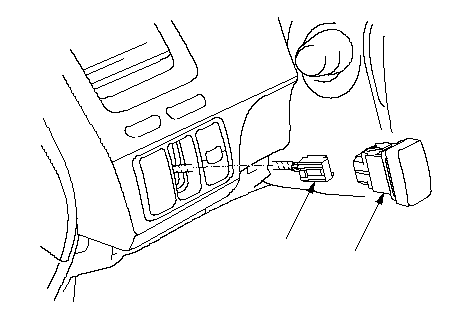

1.Remove the driver's dashboard lower cover.

2.Push out the VSA OFF switch (A) from the back of the instrument panel.




AB

3.Disconnect the VSA OFF switch 5P connector (B).

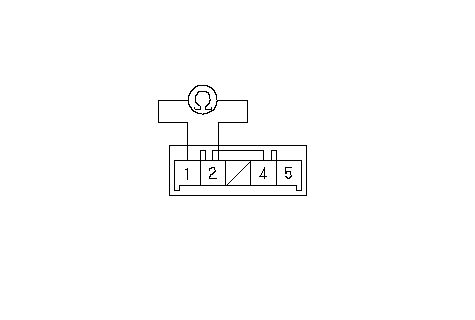

4.Check for continuity between the VSA OFF switch 5P connector terminal No. 1 and No. 2 . There should be continuity when the switch is pressed, and no continuity when the switch is released.




VSA OFF SWITCH 5P CONNECTORTerminal side of male terminals

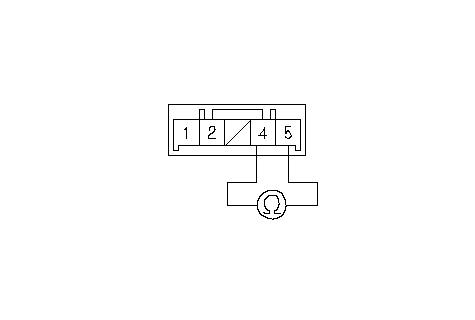

5.Check for continuity between the VSA OFF switch 5P connector terminal No. 4 and No. 5 . There should be continuity at all times.




VSA OFF SWITCH 5P CONNECTORTerminal side of male terminals
