Honda Civic 2006

Power Mirror Actuator Test

1.	Remove the driver's door panel.

2.

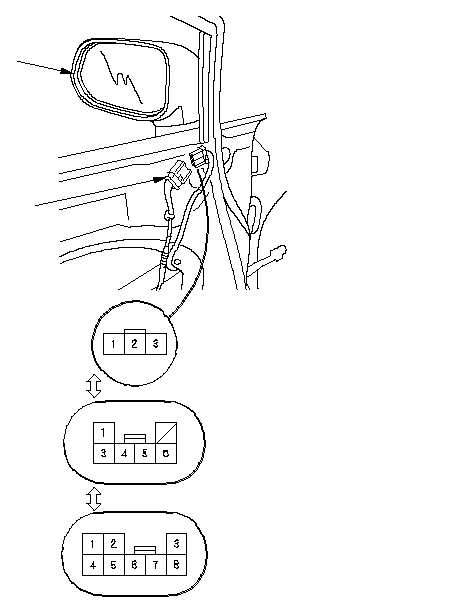

Disconnect the 3P (or 6P), (or 8P) connector (A) from the power mirror actuator (B).   Without mirror turn and retractable power mirror and power mirror defoggerTerminal side of female terminalsWith mirror turn or retractable power mirror or power mirror defoggerTerminal side of female terminalsWith mirror turn and retractable power mirror or power mirror defoggerTerminal side of female terminalsAB

3.

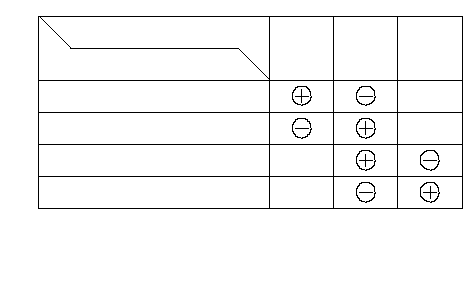

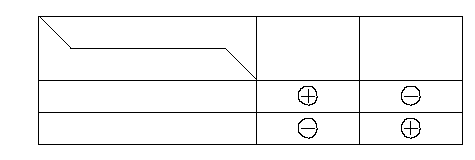

Check actuator operation by connecting power and ground according to the table.   PositionTerminal[6]*1TILT UPTILT DOWNSWING LEFTSWING RIGHTWith retractable power mirror or power mirror defogger.[8]*21[5]*1[7]*22[4]*1[6]*23*1:*2:With mirror turn and retractable power mirror or power mirror defogger. Retract Test  TerminalPosition13Mirrors retract from extend position.Mirrors extend from retract position.

4.	If the mirror fails to work properly, replace the mirror actuator.

Defogger Test

5.	Check for continuity between the No. 2 and No. 1 terminals of the 8P connector. There should be continuity with the defogger switch ON. If there is no continuity, check for an open circuit.
