Crankshaft Pulley Removal and Installation (R18A)

Crankshaft Pulley Removal and Installation

Special Tools Required

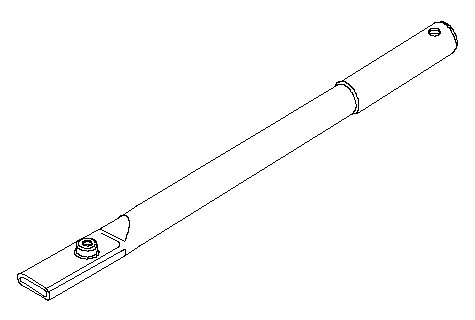

Handle (  07JAB-001020B)

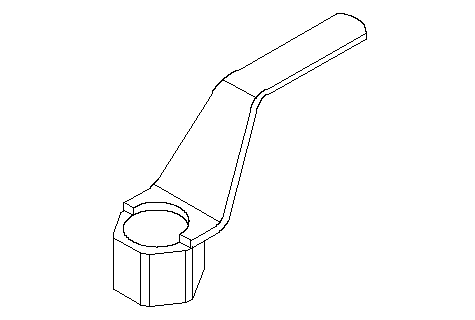

Crankshaft pulley holder (  070AB-RJA0100)

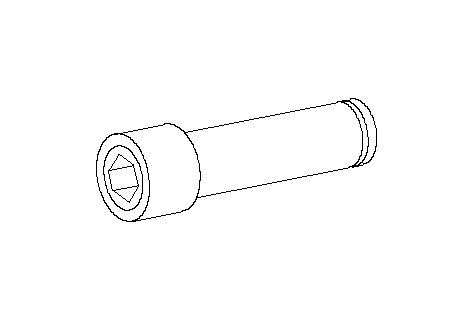

Socket wrench, 19 mm (  07JAA-001020A)




Removal


1.Remove the right front wheel.

2.Remove the drive belt.

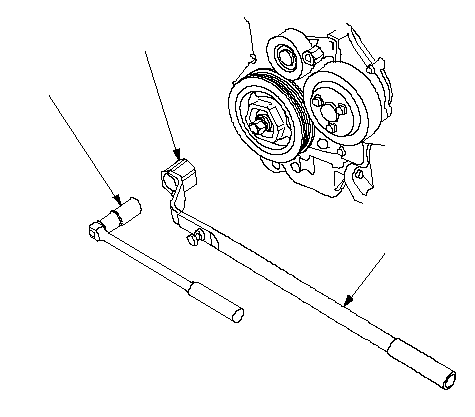

3.Hold the pulley with the handle (A) and holder (B).




B
070AB-RJA0100C
07JAA-001020AA
07JAB-001020B

4.Remove the bolt with a 19 mm socket (C) and breaker bar, then remove the crankshaft pulley.

Installation


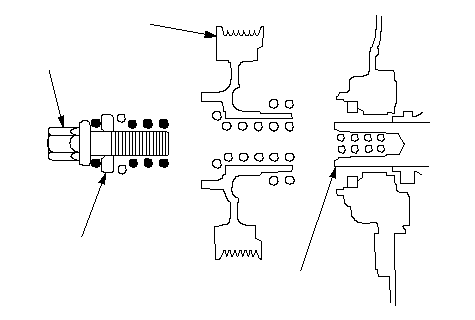

1.Clean the crankshaft pulley (A), crankshaft (B), bolt (C), and washer (D). Lubricate with new engine oil as shown.

¡: Clean
l: Lubricate with new engine oil




ABDC

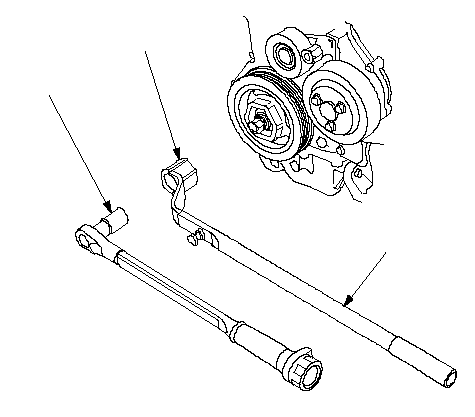

2.Install the crankshaft pulley, and hold the pulley with the handle (A) and holder attachment (B).




B
070AB-RJA0100C
07JAA-001020AA
07JAB-001020B

3.Tighten the bolt to 69 N·m (7.0 kgf·m, 51 lbf·ft) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.

4.Tighten the pulley bolt an additional 90 °.

5.Install the drive belt.

6.Install the right front wheel.
