A/T Interlock System - Park Pin Switch Replacement

• The A/T gear position indicator panel light harness is not available from the park pin switch; replace the A/T gear position indicator panel light harness, park pin switch, and the connector as a set.

• The illustration shows the LHD model; RHD model is similar.


1.	Remove the shift lever assembly.

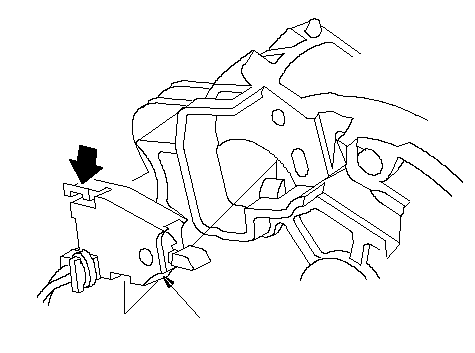

2.	Remove the park pin switch (A) while pressing the park pin switch lock (B).

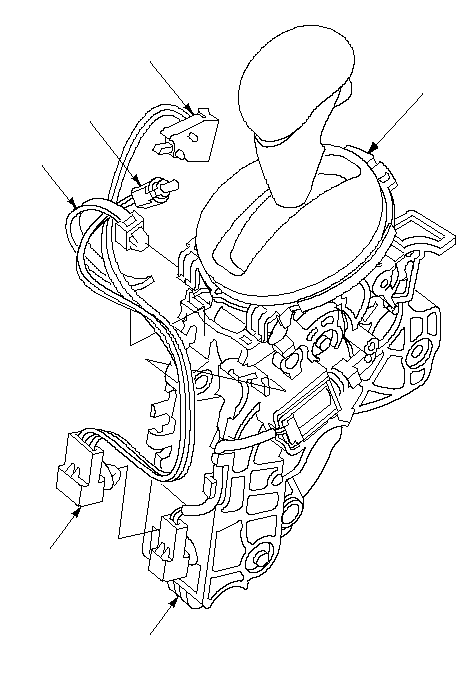

3.	Remove the A/T gear position indicator panel light and socket (A) from the indicator panel (B).

4.	Remove the harness clamp (C), and remove the park pin switch/A/T gear position indicator panel light connector (D) from the shift lever assembly/bracket base (E).

5.	Install the new park pin switch (F) on the shift lever, and install the new A/T gear position indicator panel light and socket in the indicator panel.

6.	Tie the harness together into bundle with new harness clamp, then install the harness clamp on the shift lever bracket base.

7.	Route the harnesses along the harness guides, and install the new connector in the bracket base.

8.	Install the shift lever assembly.
