Special Tools Required

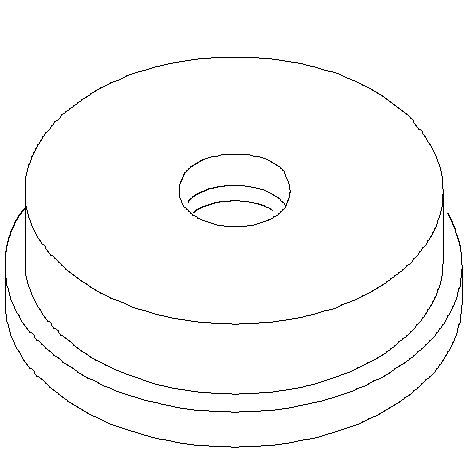

Handle driver ( 07749-0010000)

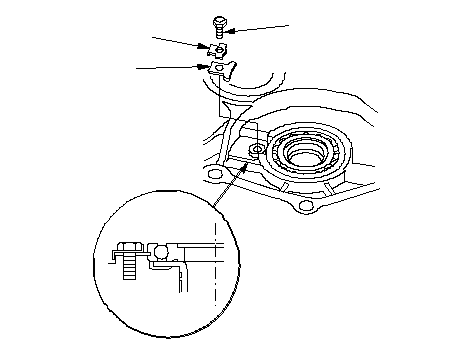

| 1. | Remove the bolt, then remove the lock washer (A) and bearing set plate (B).
|

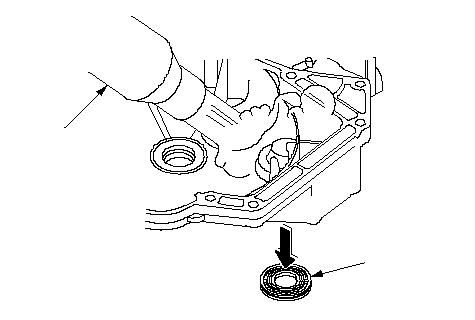

| 2. | Remove the secondary shaft bearing (A) by heating the housing to about 100 °C (212 °F) with a heat gun (B). Do not heat the housing in excess of 100 °C (212 °F). NOTE: Let the housing cool to normal temperature before installing the bearing.
|

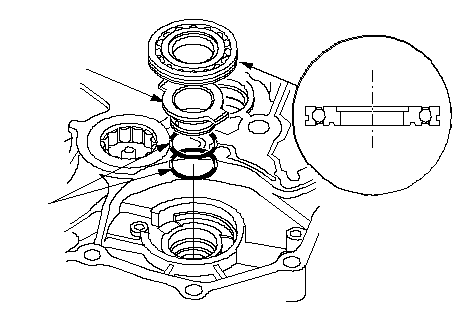

| 3. | Install the new O-rings (A) on the ATF guide collar (B), then install the ATF guide collar in the housing.
|
| 4. | Install the new secondary shaft bearing (C) in the direction shown. |

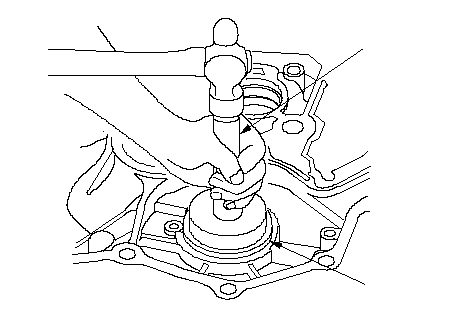

| 5. | Drive the secondary shaft bearing with the special tools, and install it securely in the housing.
|
| 6. | Check that the bearing groove aligns with the housing surface, then install the bearing set plate while aligning the bearing groove. |
| 7. | Install the new lock washer and bolt, then bend the lock tab of the lock washer against the bolt head. |
