| 1. | If the engine is already out of the vehicle, go to 12. |
| 2. | Remove the drive belt. |
| 3. | Remove the A/C condenser fan shroud. |
| 4. | Disconnect the A/C compressor clutch connector. then remove the harness clamp. Remove the A/C compressor without disconnect the A/C hoses. |
| 5. | Raise the vehicle on the hoist to full height. |
| 6. | Remove the splash shield. |
| 7. | Drain the engine oil. |
| 8. | Remove exhaust pipe A. |
| 9. | Support the oil pan with a jack. |
| 10. | Remove the lower torque rod. |
| 11. | Remove the jack. |
| 12. | European models: Remove the engine oil level sensor cover (A), then disconnect the engine oil level sensor connector (B).
|

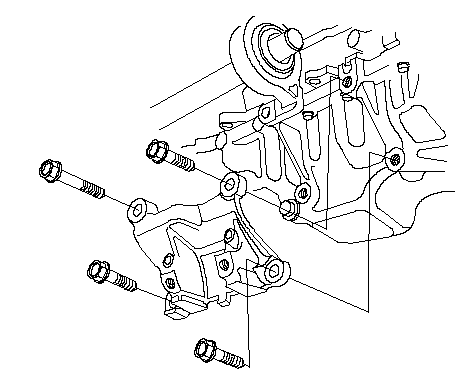

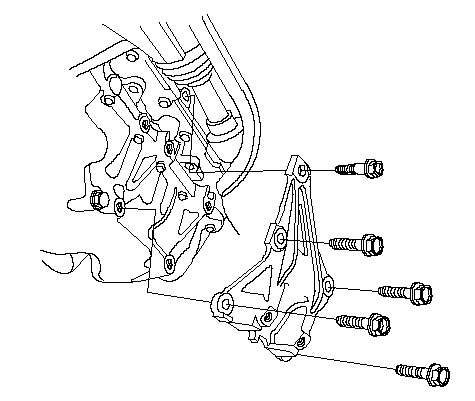

| 13. | Remove the lower torque rod bracket. M/T A/T |

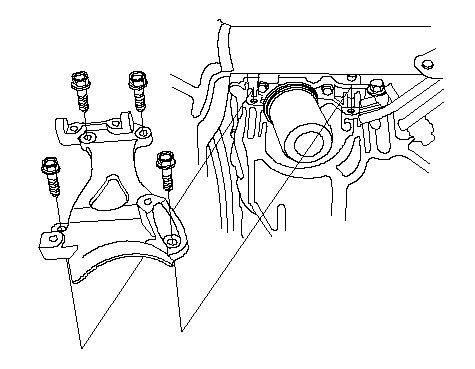

| 14. | Remove the A/C compressor bracket.
|

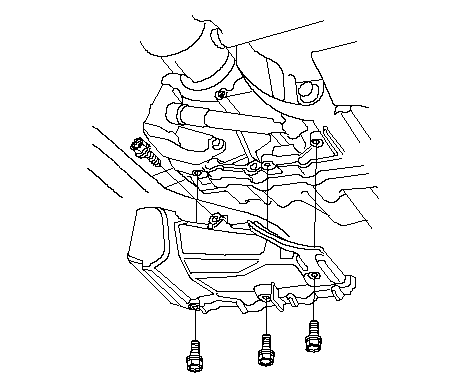

| 15. | Remove the shift cable cover (A/T).
|
| 16. | Remove the clutch cover/torque converter cover (A), and remove the two bolts securing the transmission.
|
| 17. | Remove the bolts securing the oil pan. |

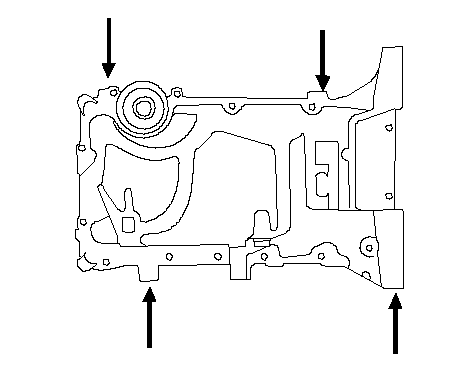

| 18. | Using a flat blade screwdriver, separate the oil pan from the block in the places shown.
|
| 19. | Remove the oil pan. |
